Early flood warning

Andel FloodAlert – Early flood warning system for single and multiple properties at risk from flooding

Sends SMS and email alerts with real-time monitoring on a secure, cloud-based portal

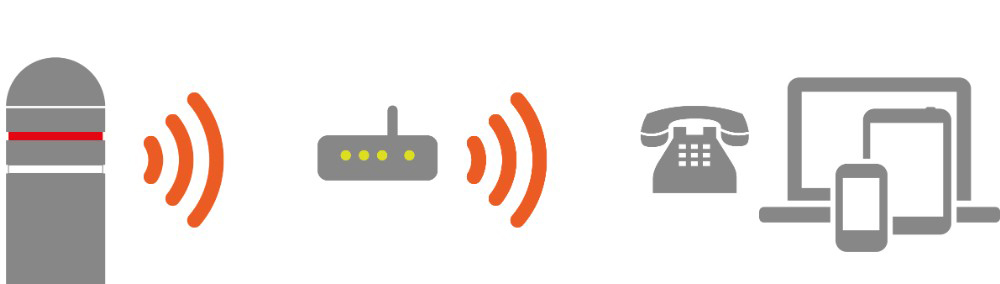

Easy to install and set up, FloodAlert posts fitted with special water level sensors transmit SMS and email warnings via a gateway to designated recipients and provide real-time monitoring of rising water levels to a cloud-based portal, accessible from any internet enabled device, with no necessity for special software.

FloodAlert uses a robust, ultrasonic LoRaWAN level sensor and integrated radio, encased in a recycled, watertight and shatter-resistant outer casing, ensuring consistent reliability. The posts can be installed up to 15 kilometres from the gateway in some cases and each gateway can connect to an unlimited number of users.

The posts can be strategically positioned to give maximum warning to allow for evasive action.

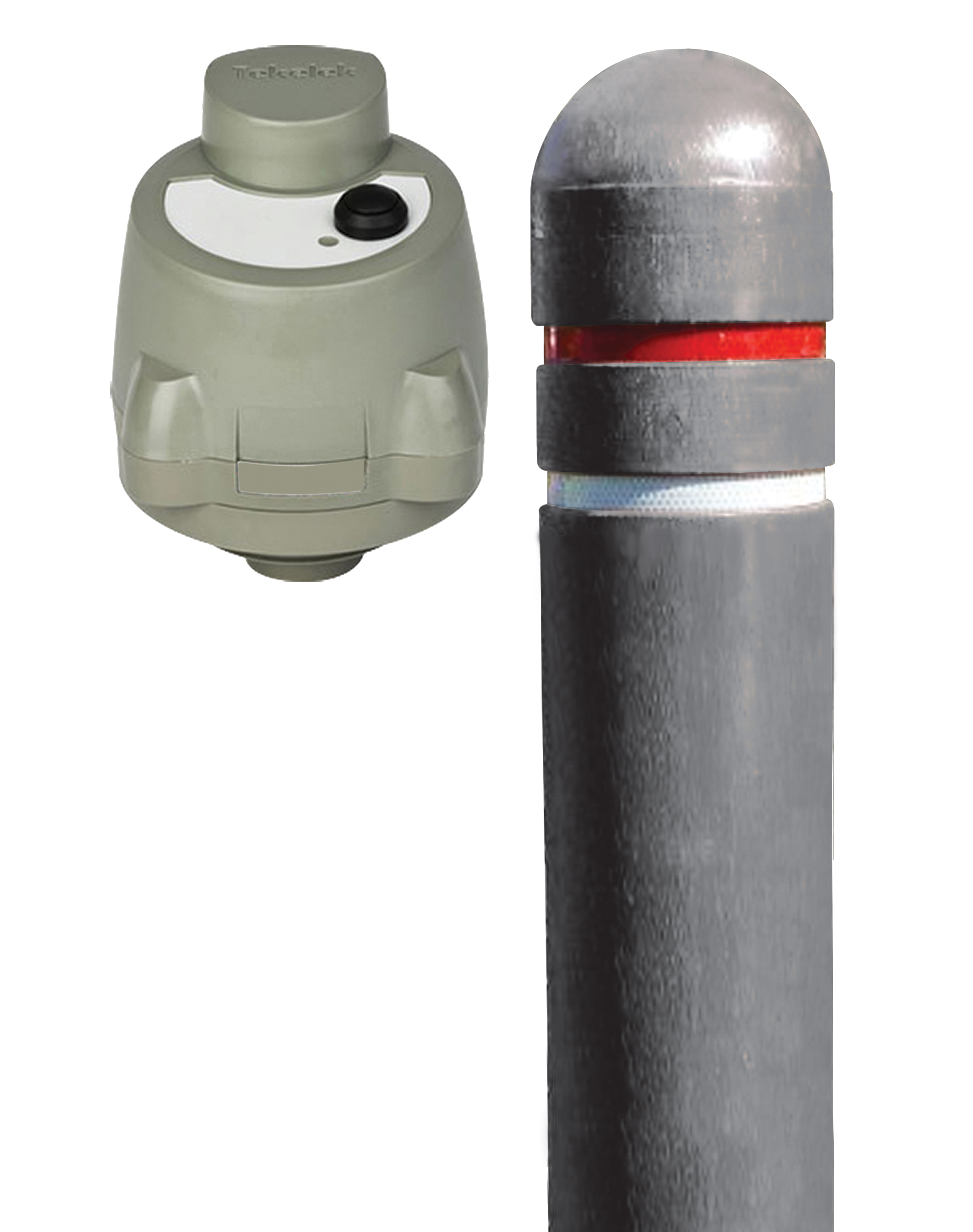

FloodAlert Sensor

FloodAlert Ultrasonic LoRaWAN Sensor is a battery operated water level sensor with integrated LoRaWAN radio. CE Conformance and RoHS Compliant. 24/7 monitoring with up to 15km range.

The sensor is integrated inside the top part of the post and monitors groundwater, surface water and watercourse levels. The top of the post can be removed to give access for maintenance, for example battery replacement, however batteries will last for 12 years and no routine maintenance is generally required.

Easy installation and set-up

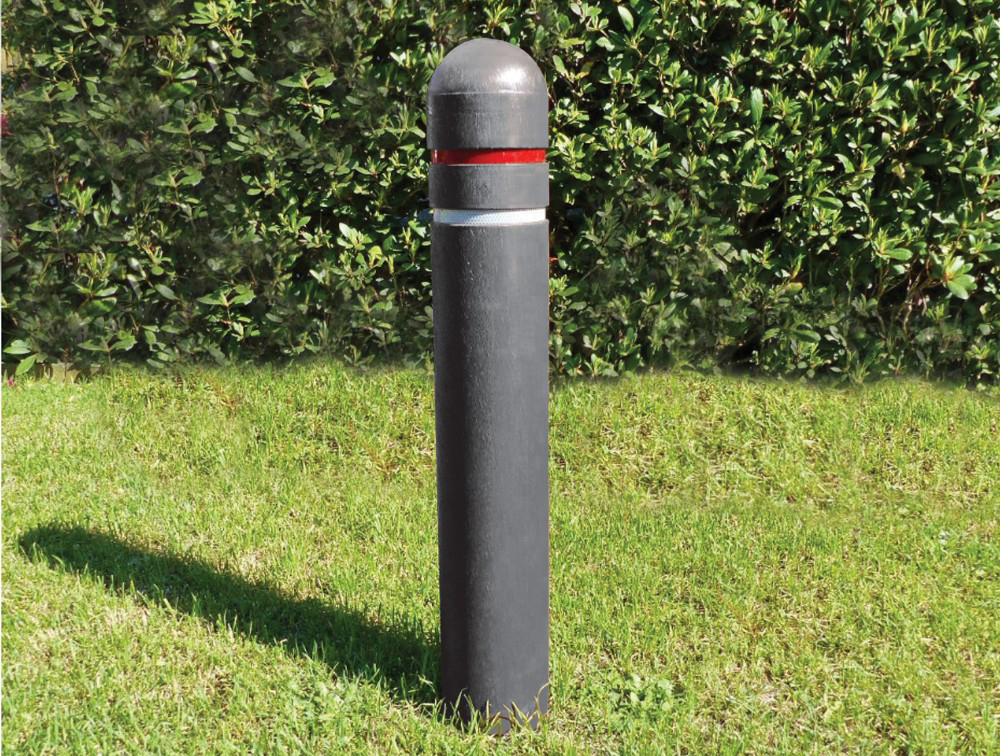

FloodAlert posts are buried in the ground in 0.5m post holes and back-filled with gravel to allow water to enter the post through rows of holes. The sensor monitors water levels below and inside the post.

In many cases a single FloodAlert post will suffice, however a number of posts can also be deployed to protect a larger risk area and multiple properties.

The post is constructed from robust, 100% recycled post-industrial plastic waste with 30mm thick walls. Rows of holes allow water to enter the post for the sensor to monitor the water levels. The posts are available in grey or brown with reflective red and white strips, they are robust and easy to install.

Key features

Cost-effective, real-time local flood alert system
Easy to install and set up
Robust and reliable system
FloodAlert® sensor sends SMS and email alerts to give you time to take evasive action to protect your property
Gateway software and hardware
Communication via a low-power LoRaWAN network
Live monitoring on a cloud-based portal, via any device with internet connectivity
Information is visualised in an easy-to-use dashboard with a simple traffic light green, amber and red warning system
Monitors surface water, ground water and watercourse levels for up to 15km from a gateway
Can communicate with an unlimited number of designated users
Three alert levels, tailored to each installation
Multiple FloodAlert posts can interconnect to form a network for flooding hotspots.

Alarm levels

Depending on ground conditions and following a survey, three alarm levels will be programmed into the system. Each time an alarm level threshold is breached, the designated property owner/s will receive email and SMS warnings.

Gateway

Users will be supplied with LoRaWAN gateway hardware and software as part of the network, receiving data from FloodAlert posts and transferring the data to the secure, cloud-based monitoring platform. Indoor and outdoor options are available, specifications vary depending on installation.

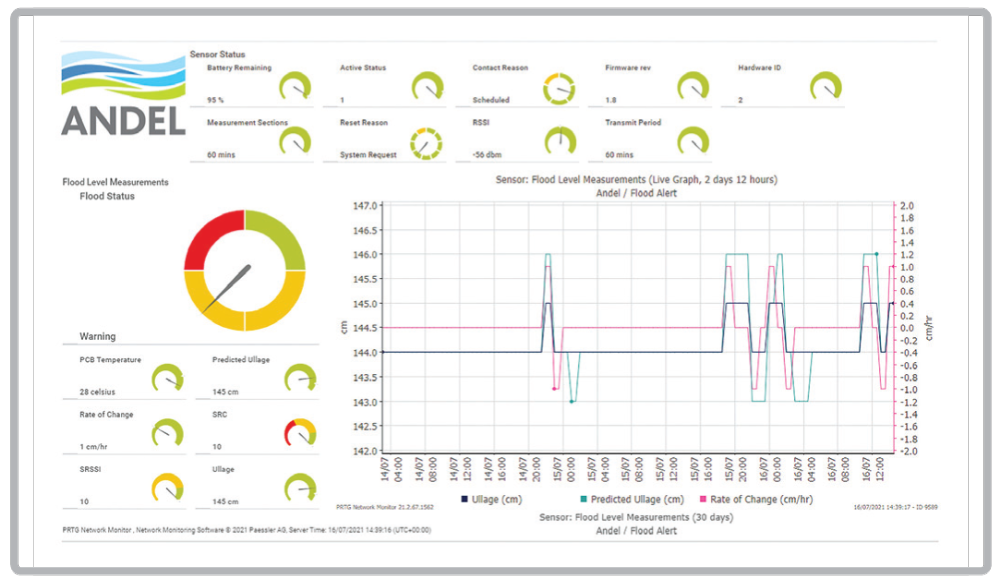

Web portal

FloodAlert provides live monitoring on a secure, cloud-based portal, accessible from any device connected to the internet and real-time, live data showing current water levels, up to the last 30 days of water levels and information about signal strength, temperature and battery life. Information from multiple data sources can be visualised in an easy-to-use dashboard with a simple traffic light green, amber and red warning system.

Andel FloodAlert downloads

Andel FloodAlert Sales Sheet
