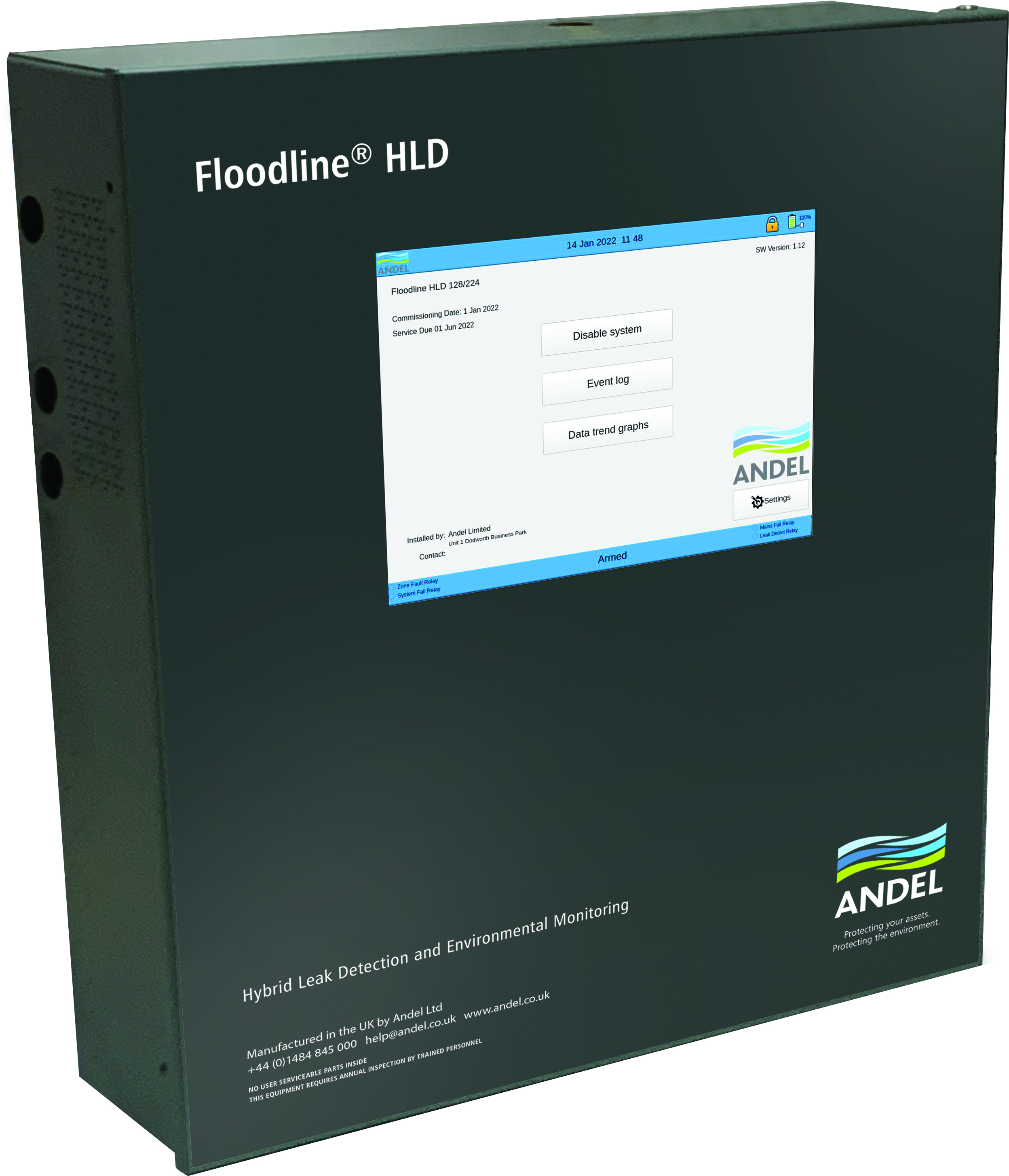

Award-winning Floodline® HLD Control Panel

The control panel that takes leak detection to a whole new level

Next generation, hybrid, multi-detector monitoring system

Unique, state-of-the-art leak detection and environmental monitoring system, the Floodline® HLD control panel is a true hybrid, the only system that is able to accept input alarms and provide detailed data from water, gas and oil leak detection sensors as well as temperature and humidity monitoring sensors simultaneously.

Floodline® HLD can monitor from 4 to 128 zones using resistance-based sensors and from 8 to 224 zones using Modbus-enabled sensors. A zone can be anthing from a single point to multiple sensors for all types of leak detection and monitoring as well as liquid leak detection distance measuring up to 1500 metres.

The system is designed for medium to large installations. Floodline® HLD operates the full network of leak detection cables and sensors from a single, wall-mounted control panel and comes packed with the latest technology and enhanced installer and end-user functionality

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection, environmental monitoring and water sustainability products, at no extra cost.

10-year warranty
Monitors from 4 to 128 zones using resistance-based sensors
Plus from 8 to 224 zones using Modbus-enabled sensors
Monitors water, oil, gas, temperature and humidity sensors simultaneously
If an alarm is triggered, HLD automatically activates solenoid valves to isolate water, oil or gas supply as required, in any single or group of zones
Allows the sensitivity of each zone to be adjusted, via the touchscreen set-up, to take into account the environment and working conditions for that zone, significantly reducing the risk of false alarms
In the event of an alarm activation or maintenance work, unaffected will continue to provide full leak detection monitoring
Full hybrid, simultaneous monitoring of traditional zonal and distance measuring leak detection systems
Accepts volt-free contact input for connection to third-party sensors and the option to monitor other remote site activities such as oil storage data.
Digital panel with large 8-inch LED touchscreen
Embedded map of monitored areas pinpoints location and nature of any alarm activation
Modbus or volt-free contact connection to BMS
Onward communication capabilities include Modbus, Ethernet, email and SMS

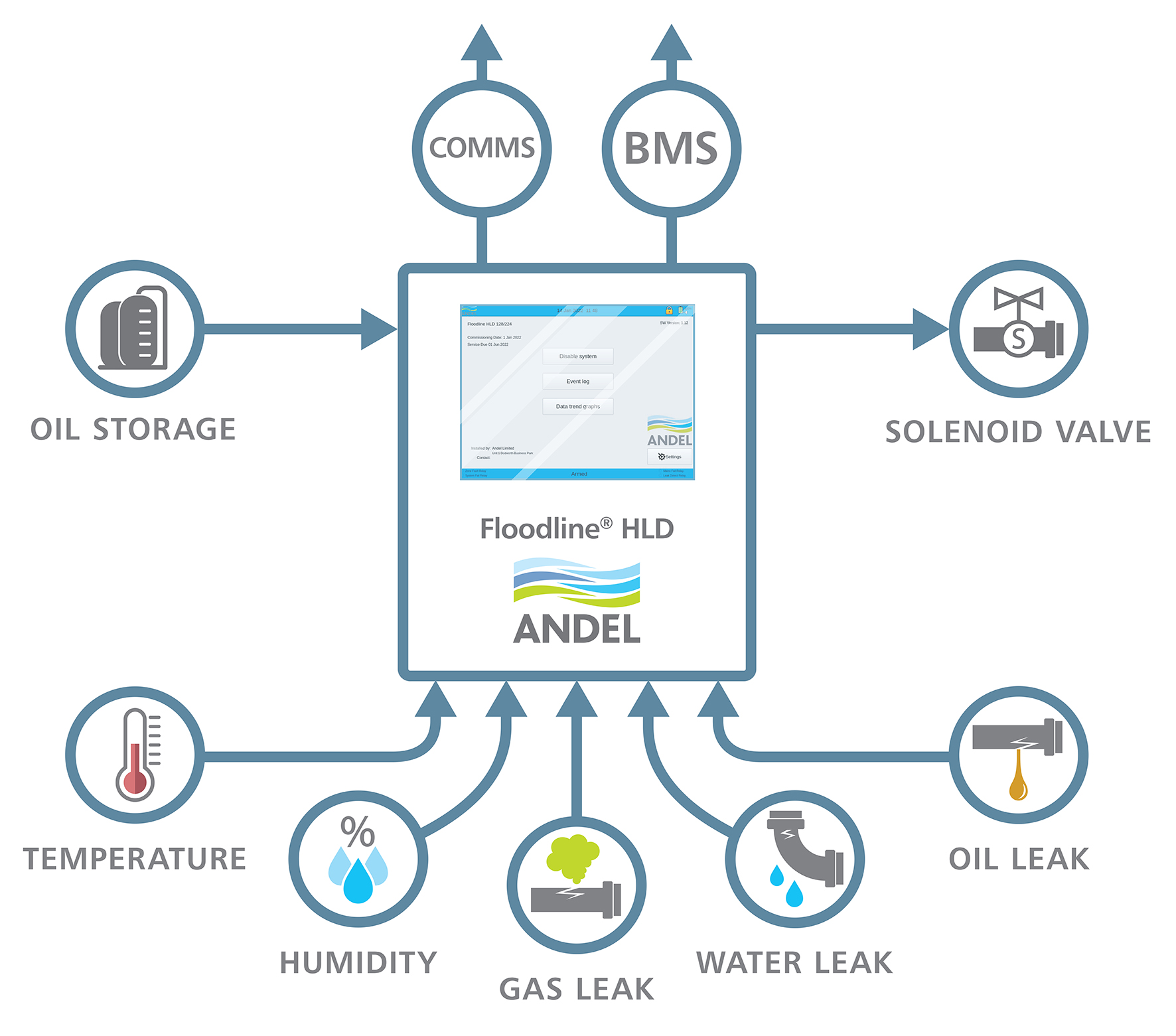

Hybrid system

The hybrid Floodline® HLD multifunction control panel provides complete BMS connectivity via Modbus and onward communication capabilities include Modbus, Ethernet, email and SMS.

The system provides simultaneous monitoring and detailed information on the large display screen for water, oil, gas, temperature and humidity sensors. HLD accepts volt-free contact input for connection to third-party sensors and has the capability to monitor other remote site activities such as oil storage data.

Large 8-inch LED touchscreen provides full overview of the system

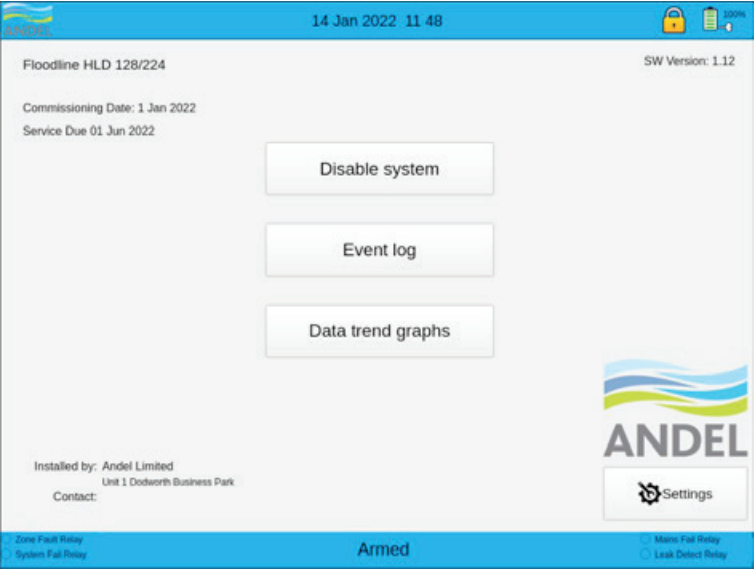

home screen

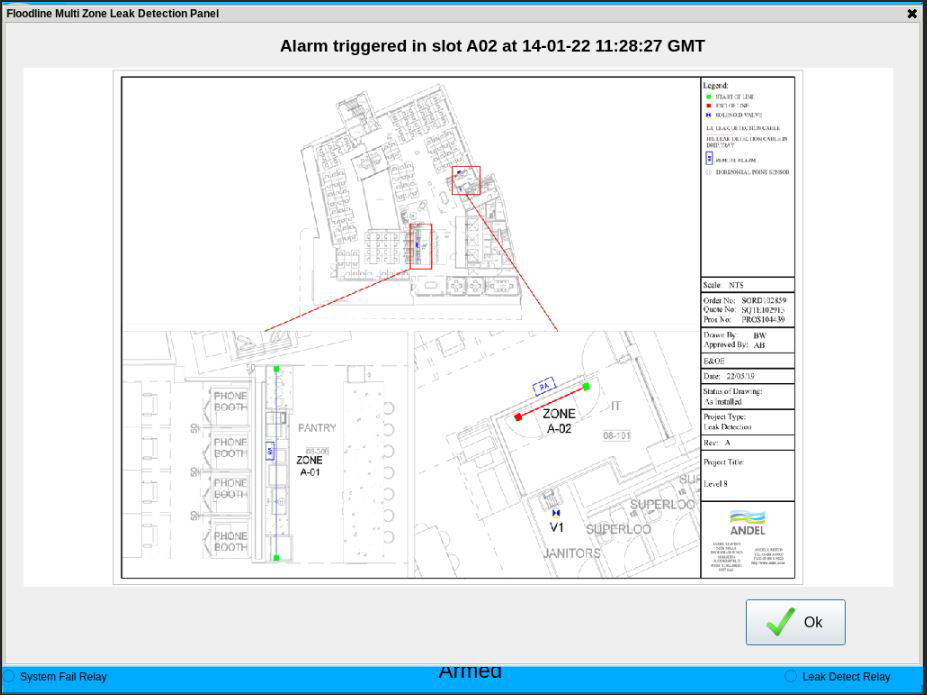

Zone map screen

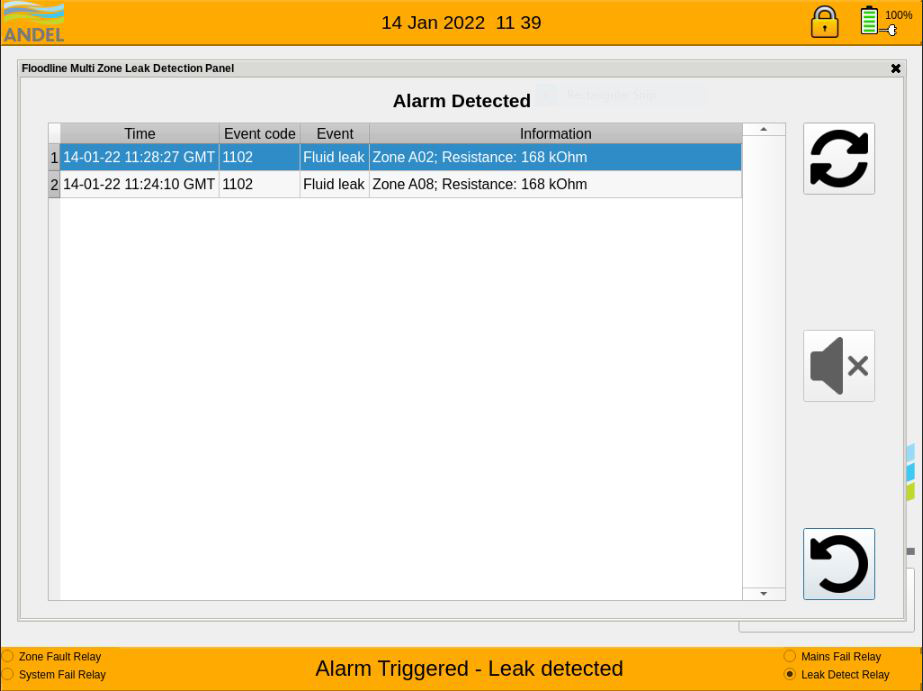

Alarm screen

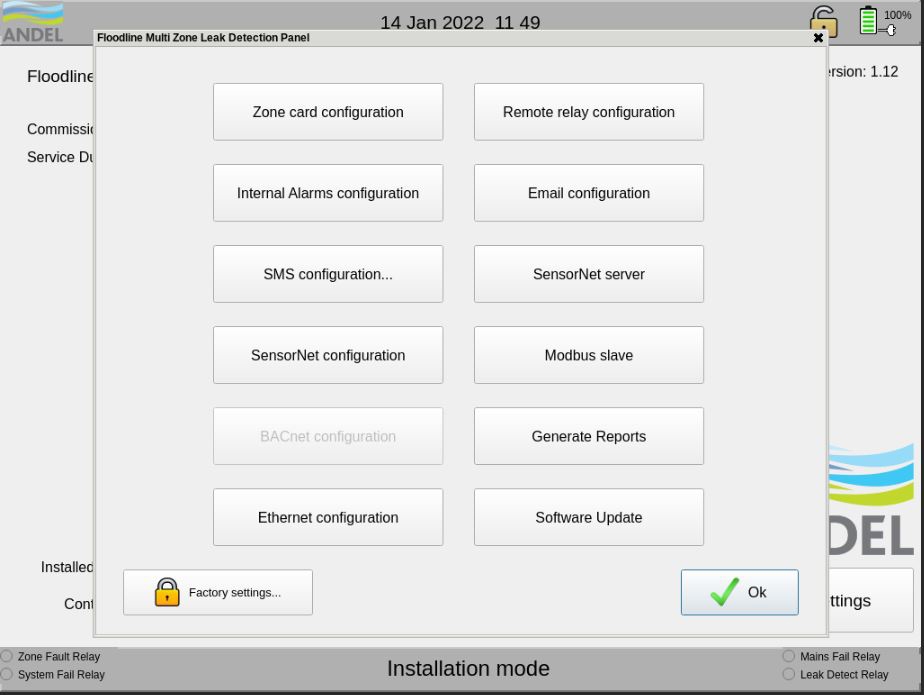

Settings menu

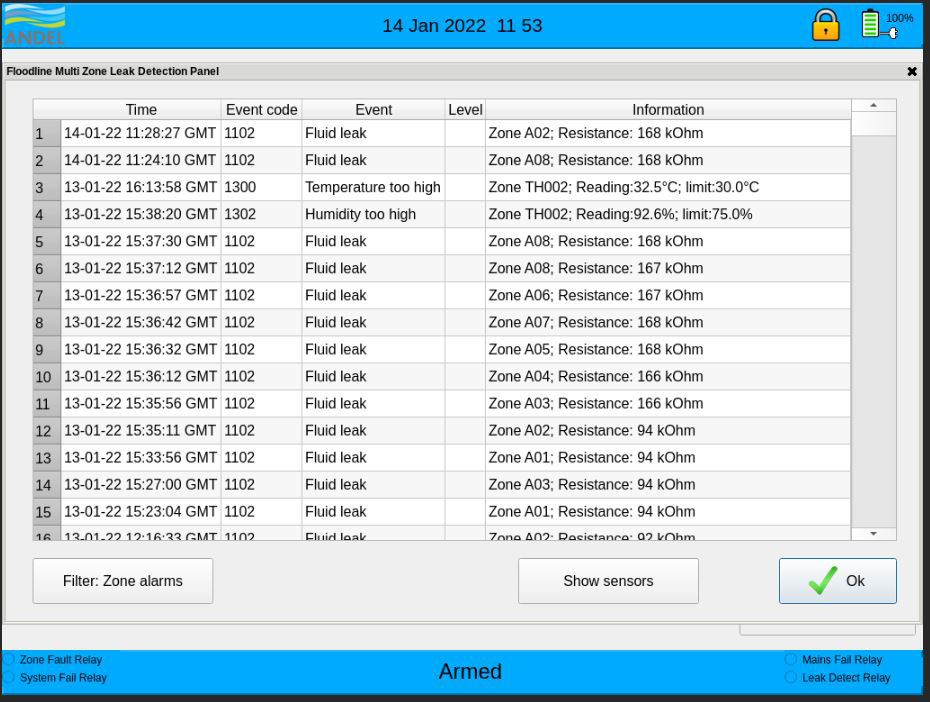

Alarm event log screen

Technical information

Zone Sensitivity

Each traditional zone input sensitivity can be configured individually. The temperature and humidity sensor can be configured for four separate alarm levels.

Communications

Modbus over RS485 and TCP/IP
Alarm alerts via email
Alarm alerts via mobile network
Ethernet connection
Relay Outputs:
- Complete Power Failure (SPCP 240Vac 5 Amp)
- Mains Failure (SPC0 240Vac 5 Amp)
- System Failure (SPCO 240Vac 5 Amp)
- Zone Fault (open/short circuit) (SPCO 240Vac 5 Amp)
- Leak Detected (SPCO 240Vac 5 Amp)

Data Logging

There are two types of data logged by the system:
Events Data Logging – last 500 alarm/system events with date and time

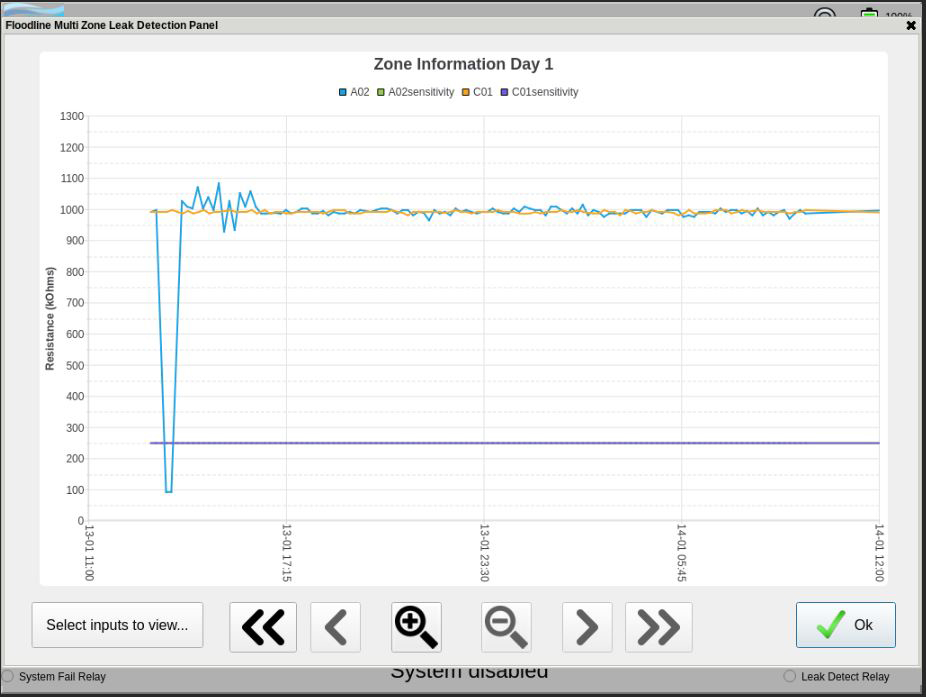

Traditional Zone Data Logging – each zone’s input levels are recorded every 5 minutes over 7 days on a FIFO basis

Power

110-240 Vac 50/60Hz

Construction

Powder-coated steel enclosure, colour RAL 7043

Dimensions

Height: 400mm Width: 335mm Depth: 115mm

Fixing

Surface mounted
