Control and alarm panels

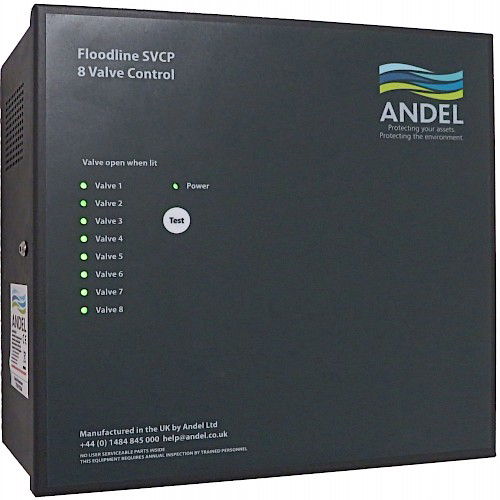

Floodline® 8-Way Solenoid Valve Control Panel (SVCP)

Controls operation of up to eight solenoid or energy-saving motorised valves to isolate water, oil or gas supply if an alarm is triggered.

Floodline® 8-Way SVCP monitors alarm relays in a Floodline® control panel and automatically controls the operation of solenoid or energy-saving motorised valves to isolate a water, oil or gas source when a leak is detected. Floodline® 8-Way SVCP is available in eight configurations to control up to eight 24Vdc 16 Watt valves.

The SVCP has illuminated power and alarm indicators, fuse protection for each power output, output for both normally open and normally closed valves and a valve test button for testing the operation of the valves.

Key features

Monitors alarm relays in a Floodline® control panel
Controls operation of up to eight 24Vdc 16 Watt solenoid or energy-saving motorised valves
Illuminated power and alarm indicators
Fuse protection for each power output
Valve test button
Height 276mm x Width 276mm x Depth 100.5mm

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection, environmental monitoring and water sustainability products, at no extra cost.
