Floodline Ranger® Distance Measuring System

Operates as a stand-alone system or integrates into a larger installation within a network of multiple zones

Floodline Ranger® is a distance measuring system comprising control panel and detection cable providing leak detection for up to 1500 metres. Ranger® can operate as a stand-alone system or can easily be integrated into a larger Floodline® installation, functioning as a zone, connecting to any Floodline® control panel. The system is ideal for data centres, plant rooms, warehouses, libraries, museums and any longer areas that require liquid leak detection. The system provides more choice for those customers who require a distance measuring system with the advantage of also working within a network of multiple zones and a range of other sensors in any size of installation.

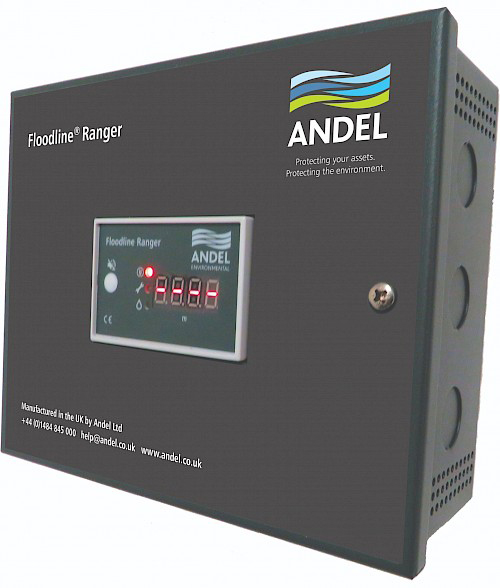

If an, the control panel triggers an audio visual alarm as well as triggering onward communication to BMS or similar. Illuminated LEDs on the control panel provide visual indication for power, leak detection, system status alerts and communications. The leak detection LED indicator on the control panel shows the distance to the leak.

The high-visibity sensor cable detects the presence of water (or oil if oil sensor cable is used) at any point along its length. Detection cable is available in a range of pre-terminated lengths with locking connectors to join the lengths together. Conductive-polymer technology and fluoro-polymer construction make the water sensor cable mechanically strong and highly resistant to corrosion and abrasion. Oil sensor cable uses radiation-crosslinking and conductive-polymer technology to make the cable strong and chemically resistant.

Ranger® water sensor cable dries and resets within 15 minutes after removal from standing water and can be wiped with a clean, damp cloth. Ranger® oil sensor cable cannot be reset after a leak and the affected section needs to be replaced.

Key features

Distance measuring control panel with water or oil detection sensor cable
Ideal for longer areas of liquid leak detection
Connects to up to 1500 metres of high-visibility detection cable
Can be a stand-alone system or can function as a zone as part of a larger Floodline® installation for continuous leak detection
Wall mounted control panel
Conductive-polymer technology and fluoro-polymer construction make the water sensor cable mechanically strong and highly resistant to corrosion and abrasion
Oil sensor cable uses radiation-crosslinking and conductive-polymer technology to make the cable strong and chemically resistant
Detects the presence of water or oil at any point along the entire length of the Distance measuring control panel with water or oil detection sensor cable
Ideal for longer areas of liquid leak detection
Connects to up to 1500 metres of high-visibility detection cable
Can be a stand-alone system or can function as a zone as part of a larger Floodline® installation for continuous leak detection
Surface mounted
Conductive-polymer technology and fluoro-polymer construction make the water sensor cable mechanically strong and highly resistant to corrosion and abrasion.
Oil sensor cable uses radiation-crosslinking and conductive-polymer technology to make the cable strong and chemically resistant.
Detects the presence of water or oil at any point along the entire length of the connected cable

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection, environmental monitoring and water sustainability products, at no extra cost.
