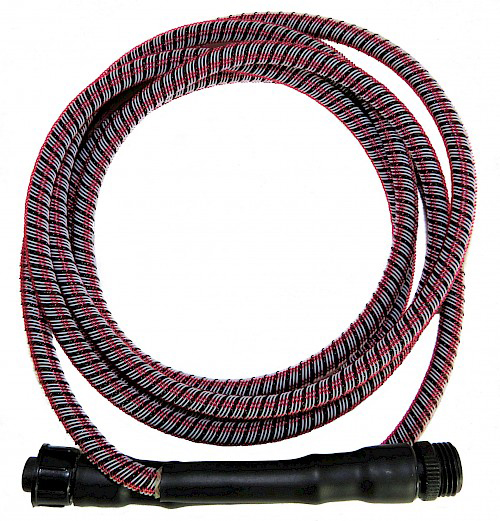

Floodline Ranger® Oil Distance Measuring Leak Detection Sensor Cable

Provides distance measuring for dedicated oil leak detection up to 1500 metres

Floodline Ranger® Oil Distance Measuring Leak Detection Cable detects the presence of liquid hydrocarbon fuels over a range of both distance measuring and shorter areas at any point along its length and does does not react to the presence of water. Installed with a Floodline Ranger® Leak Detection Module, the cable senses a hydrocarbon liquid leak, triggers an alarm and pinpoints the location of the leak to within a metre.

Floodline Ranger® provides distributed leak detection and location for a wide range of applications. The cable is available in a variety of lengths to provide as much coverage as required up to 1500 metres.

The modular sensing cables can be connected in series to provide distributed distance measuring for applications such as trenches, sub-floors, double-containment pipework or used individually for double-containment tanks, sumps and shorter lengths and smaller areas.

Floodline Ranger® uses radiation-crosslinking and conductive-polymer technology to make the sensing cable mechanically strong and chemically resistant. The core of the cable has two sensing wires, an alarm signal wire and a continuity wire. The core is encased in a conductive-polymer jacket and surrounded with a fluoropolymer braid. The rugged construction guarantees reliable performance in the most demanding environments.

The cable must be replaced after exposure to hydrocarbon liquids. The cable is resistant to chemical exposure in accordance with ASTM D 543 at +23°C (+73°F) for seven days including sulphuric acid (10%), hydrochloric acid (10%), nitric acid (10%) and sodium hydroxide (10%). The cable is resitant to water less than 10μA leakage when immersed in salt water for 90 days.

Floodline Ranger® Leak Detection Cable is approved for installation in hazardous areas when used in conjunction with Floodline Ranger® Leak Detection Module and Zener safety barriers when appropriate.

Key features

Ideal for both distance measuring and monitoring of shorter areas for dedicated oil leak detection
Provides up to 1500 metres of oil leak detection
Installed with a Floodline Ranger® P-LFP1 Leak Detection Module
Can function as a stand-alone oil leak detection system
Ranger® module can be a sub-panel and function as a zone as part of a larger Floodline® installation for continuous leak detection
Module pinpoints the location of the leak to within a metre
Conductive-polymer technology construction makes the sensor cable mechanically strong and chemically resistant
Detects the presence of oil at any point along its entire length
Operating temperature –20°C to +60°C (–4°F to +140°F)
Red, white and black fluoropolymer braid
8mm cable diameter

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection, environmental monitoring and water sustainability products, at no extra cost.
