FlowStop® Flow Meter and Automatic Water Supply Isolator – for water sustainability

Sustainable solution to avoid the costly consequences of water damage

FlowStop® is an effective and sustainable water conservation solution, saving precious water, saving on water bills and protecting against the costly consequences of water damage from burst pipes, internal leaks and floods.

Cost-effective and WRAS approved, Andel FlowStop® automatically isolates your water supply in the event of abnormal flow activity or the risk of freezing pipes – and because it can monitor two water supplies it is ideal for multi-occupancy developments with separate hot and cold water supplies.

Andel launched FlowStop® in response to the growing requirement from insurers of residential properties to have a mains water leak and flood prevention system in place. FlowStop® provides a highly cost-effective and easy-to-install automatic water supply shut-off system, offering 24-hour protection against internal leaks and floods.

With FlowStop®, there is also the option to add leak detection sensors in vulnerable areas within a property such as kitchens and utility rooms with appliances using mains water such as washing machines and dishwashers and any other areas with running water such as bathrooms, toilets and sinks.

Key features

Highly cost-effective
Low maintenance
Easy install, easy set-up
Monitors up to two water supplies
Freeze protection
Time-out protection
Excess flow protection
24-hour non-use protection
Override control
Discreet wall-mounted control unit
Easy-to-fit water flow meter and valve unit
Optional leak detection sensors
Optional connection to BMS
Optional connection to onward GSM for absent occupants
Mains or battery powered

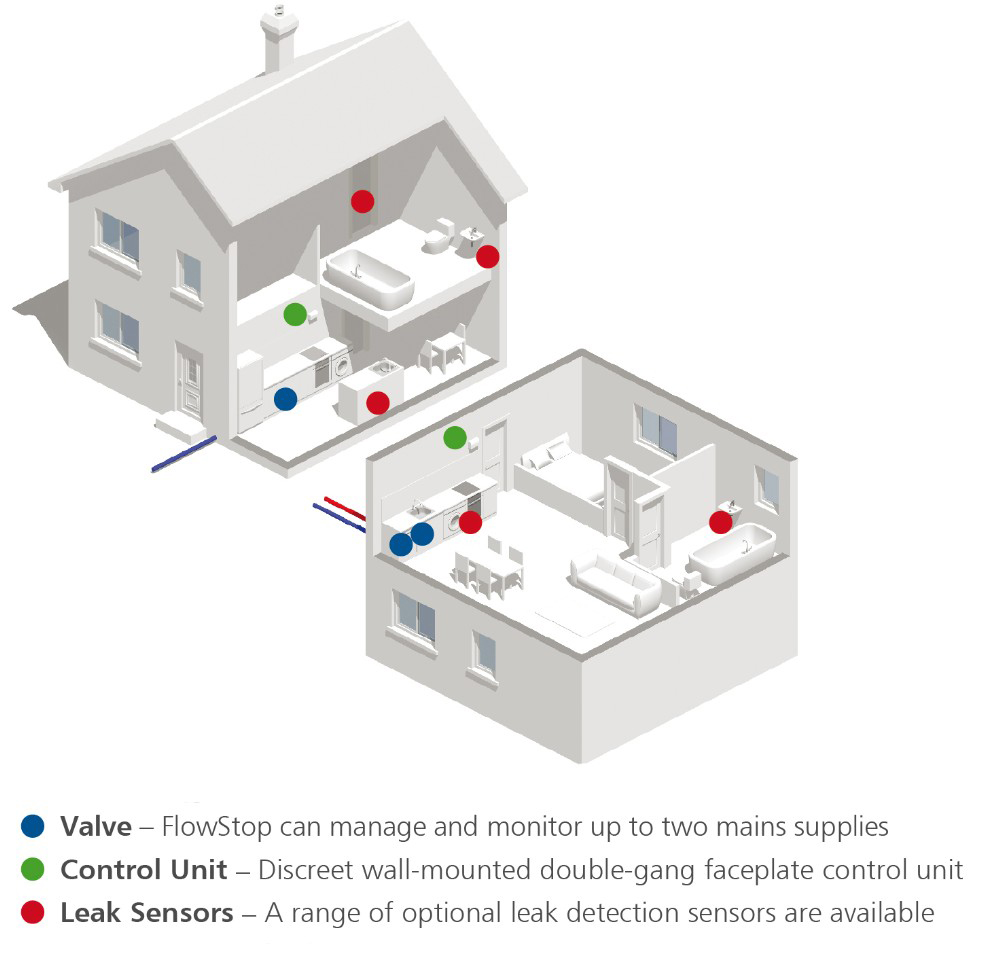

Monitors up to two water supplies into a property

FlowStop® is ideal for residential properties and because it can monitor and manage up to two water supplies it is also the perfect solution for those properties with seperate hot and cold water supplies such as residential apartments, student accommodation, hotel rooms, offices and commercial units.

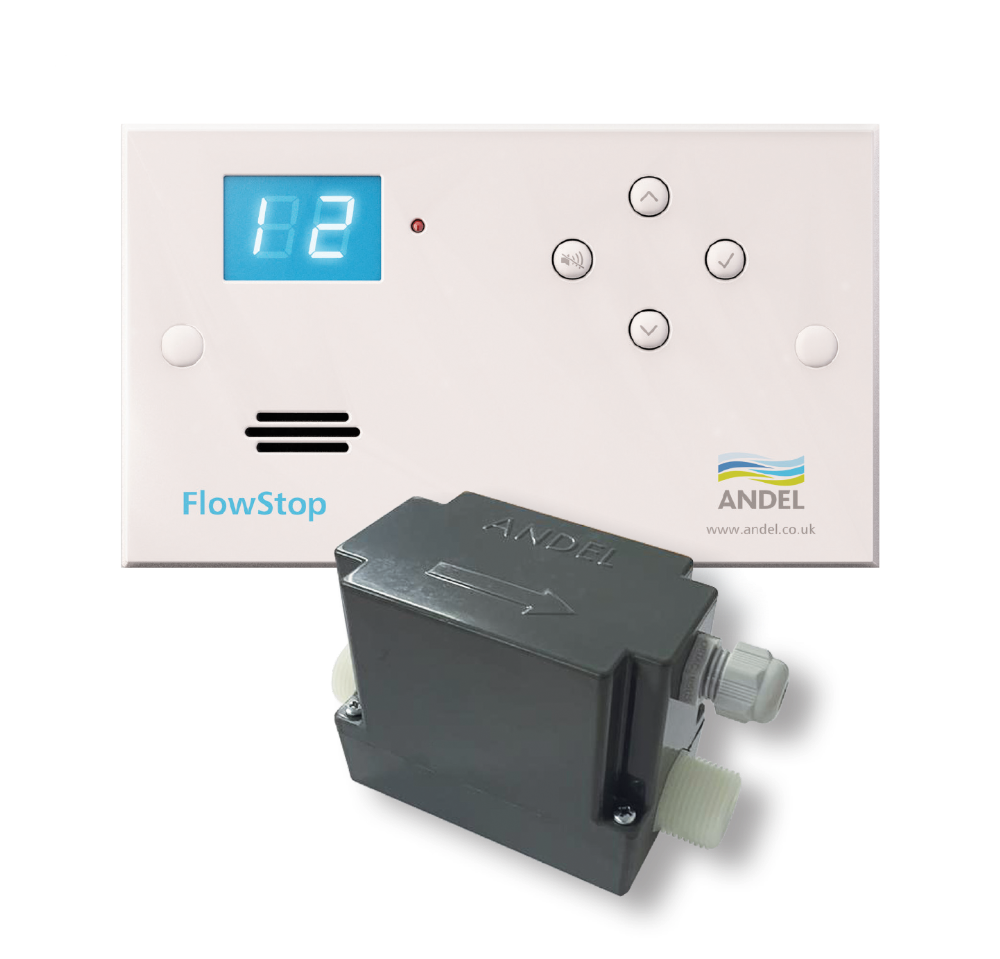

The FlowStop® system includes a discreet wall-mounted control unit and up to two flow meter/valves plus an additional solenoid valve for the return flow if required.

The control unit can be located in any convenient place, in a cupboard or mounted on the wall near the valve/s, the discreet design is a double-gang white faceplate that blends into any decor.

FlowStop® features and functions

FlowStop® Flow Meter/Valve:

Freeze Protection: Turns the water OFF if the temperature falls below 1-5°C (user adjustable).
Time Out Protection: Turns the water OFF if water has been running for more than 10-60 minutes (user adjustable).
Excess Flow Protection: Turns the water OFF if the system senses that there has been a burst pipe or there is an abnormal flow of water between 10 and 40 litres per minute (user adjustable).
24-Hour Non-use Protection: Turns the water OFF if no water has been used for 24 hours.
Reset Button: Resets the system and allows the water supply to flow again

FlowStop® Control Unit:

Faceplate: Discreet design double-gang faceplate featuring 2-digit LED number display, red LED warning light and 4 navigation buttons for easy set up. Can be surface mounted or flush mounted using a standard back box.
Reset Button: Resets the system following activation and allows water to flow again.
Override feature: Turns the monitoring off to allow for prolonged water use such as watering the garden.
Additional leak detection sensors: Can be added to detect leaks in vulnerable areas such as under washing machines and dishwashers as well as in bathrooms and toilets (optional).
Output: Volt-free relay contact rated 30V @ 1A per input.

Technical information

Pipe Size: Andel FlowStop valves are available in UK and EU 15mm and 22mm diameter pipe sizes.

Power: Mains 240V or battery operated (9V PP3 1200mAh).

Construction: Control Unit: Moulded ABS

Dimensions: Control Unit: W145mm x H85mm x D9mm

Operation: Max working pressure 10 bar. Min operating pressure 1 bar. Working temperature 4-80°C. Can handle 2 inputs and control up to 3 solenoid valves.

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection, environmental monitoring and water sustainability products, at no extra cost.

FlowStop® Datasheet downloads

FlowStop®
